Poles Your City’s Future Can Rely On

SMART TRAC, Hapco’s patent-pending aluminum POLE SYSTEM, offers innovative multi-use poles and accessory mounting options that are the perfect blend of functionality, versatility, strength and aesthetics.

SMART TRAC is the FOUNDATION for tomorrow’s Smart Cities.



5g smart pole top

Mounting Heights: Up To 50′
Butt Diameters: 4″, 6″, 8″ and 12″
Wall Thickness: .250″
Shaft Material: Aluminum Alloy 6005A-T5

Four Shaft Sizes

SMART TRAC pole profiles as seen from above
SMART TRAC pole profiles

SMART TRAC shafts are offered in 4″, 6″, 8″ and 12″ Butt Diameters. Each shaft is designed with four “TRAC” systems at 0°, 90°, 180°, and 270°. “TRAC” profiles are identical on all sizes, allowing accessory attaching hardware to work with all SMART TRAC designs.



Note: Heavy-Duty Arm Mounting Brackets are specific to 6″, 8″ and 12″ diameter shafts.

Quad-Chamber, Signal Isolation Solution

Each SMART TRAC shaft is designed with four separate chambers which provide secure access to multiple individual providers. Separation is continuous throughout the pole, including through the base and transitions. SMART TRAC is the PERFECT Signal Isolation Solution for Multi-Use poles utilized by today’s Smart Cities.

Modular Mounting Solutions

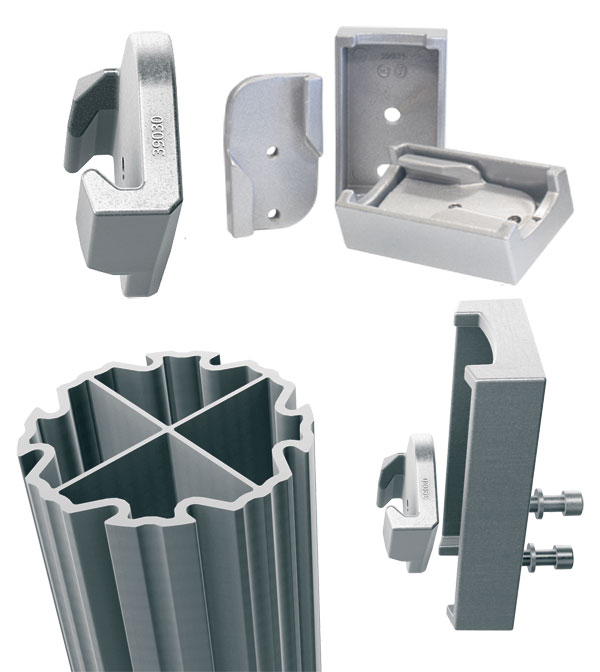

Sample of the SMART TRAC cam system
Sample of the SMART TRAC cam system

The Patented design of SMART TRAC allows the use of a Locking Cam for the mounting of a variety of pole accessories. When tightened against the pole, the grooves of the Locking Cam twist, pull, and tighten against the tracks of the pole.

Strong, secure, and simple installations that can be moved, modified, or removed and replaced without the unsightly bands and drill holes associated with standard pole accessory installations. Two sizes of Cover Boxes provide a range of installation options for both wired and non-wired accessories.

View Locking Cam Video

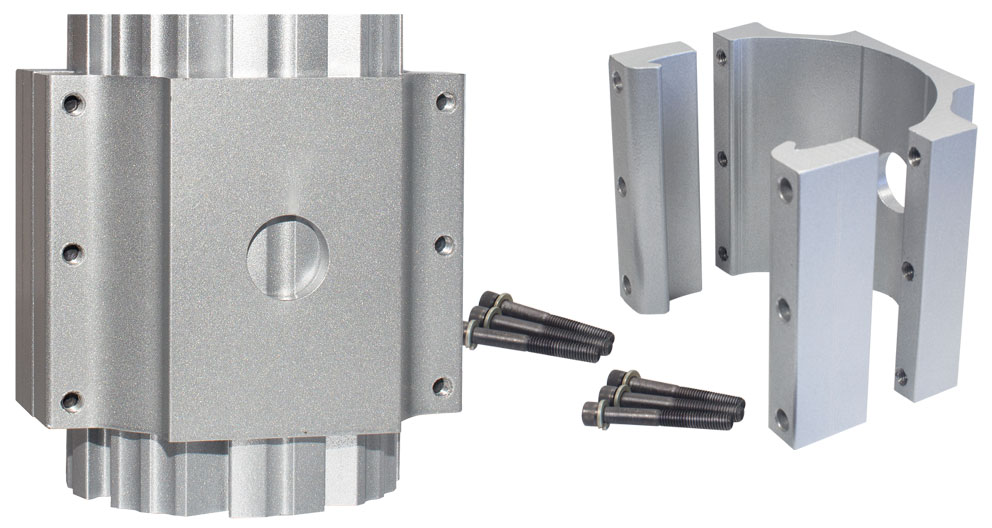

Heavy-Duty Arm Mounting Brackets

SMART TRAC’s Heavy-Duty Bracket is designed for use with the most common arm designs and can be used in combinations for Truss Arms and Custom Designs. NO DRILLING of the pole is required, allowing job site placement and future movement.

View Heavy-Duty Mount Video
SMART TRAC Arm Bracket mounts
SMART TRAC Arm Bracket mounts

Transition Rings

Cast Aluminum Transition Rings provide aesthetic pole options across a range of design criteria. Transition Rings are available in both 8″ to 6″ and 6″ to 4″ sizes offering multiple design configurations.

The signal isolation feature of the SMART TRAC system is also carried throughout the transition ring section as well providing continuous separation.

View Transition Ring Video

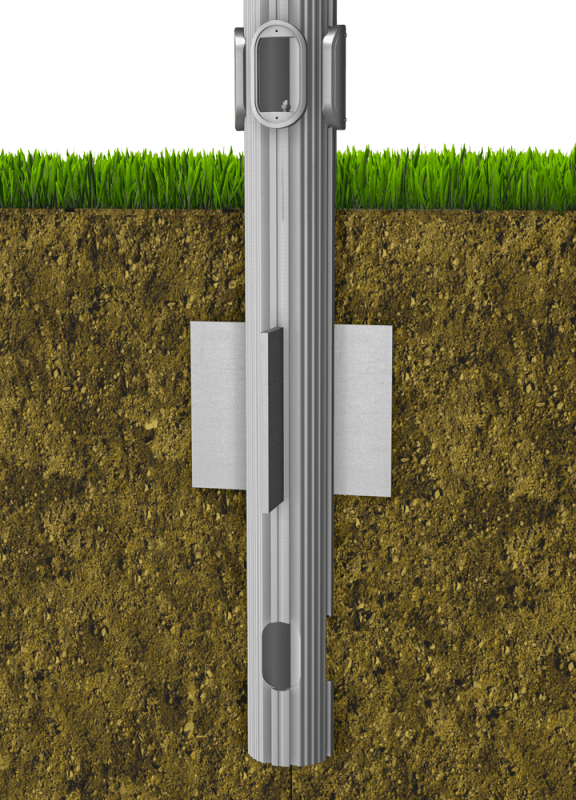

Direct Buried Smart Poles

Direct Buried (Embed) SMART TRAC options are available in all sizes and mounting heights, allowing for faster, more cost-efficient installations.

14 Advantages of Direct Buried Aluminum Poles
