RTS No Arm 4-Bolt Base Round Tapered Steel Pole



To download a printable file, click PDF Download >

Pole
Pole shaft shall be weldable-grade, hot-rolled, commercial quality carbon steel tubing conforming to ASTM A595 Grade A. Options include 11 gauge and 7 gauge. All Welds shall conform to AWS D1.2 using ER70S-6 electrodes.

Base Style

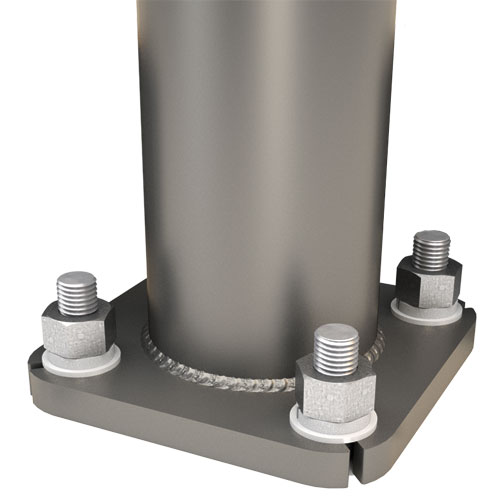

4-Bolt Steel Base Plate of fabricated hot rolled carbon steel conforming to ASTM A36 or equivalent (36 ksi minimum yield) with 2-piece Base Cover and attaching hardware. Base Cover will be fabricated from metal materials.
rts-Base-without-cover-500x500
Base Cover
Square Metal powder coated base covers are standard in all RTS poles.

rts-base-open-close-500x500

Handhole
Up To 5.9” Butt Diameters –
Reinforced, 3” x 5” Handhole with Cover, Stainless Steel Screw and Back Bar. A Grounding Provision incorporating a tapped 1/2”-13NC hole will be welded to the handhole frame.

6+ Butt Diameters –
Reinforced, 4” x 6-1/2″ Handhole with Cover, Stainless Steel Screw and Back Bar. A Grounding Provision incorporating a tapped 1/2”-13NC hole will be welded to the handhole frame.

Anchorage
Anchorage Kit will include four (4) L-shaped Steel Anchor Bolts conforming to AASHTO M314-90 Grade 55. Ten inches (10”) of threaded end will be galvanized per ASTM A153. Kits will contain eight (8) Hex Nuts, four (4) Lock Washers, and eight (8) Flat Washers (all components Galvanized Steel). A bolt circle template will be provided.

Base and Anchorage Details
Read More >

RSS-Anchoirage-Front-500x500
Vibration Damper
If determined necessary by Hapco an internal, factory installed, Second Mode Vibration Damper will be provided. Customer specification of the damper is available.

Vibration Dampers
Read More >



Powder Coat Finish
Coating material will be a thermosetting polyester AAMA 2604 Super Durable powder electrostatically applied, oven cured and bonded in a closed loop, automated system. Minimum thickness of finish will be two (2) mils. Hapco’s Powder Coat Finish Warranty on steel poles is one (1) year.

Finish Options
Read More >

RAL-swatch-1024x768

When specifying Pole Accessories, it is important to provide Hapco the correct design orientation. This diagram provides the degree specification and corresponding letter on the pole relative to the pole handhole, and should be used for Drill Mount Options, Electrical Boxes, and Accessories such as Extra Hand Holes and Threaded Couplings.

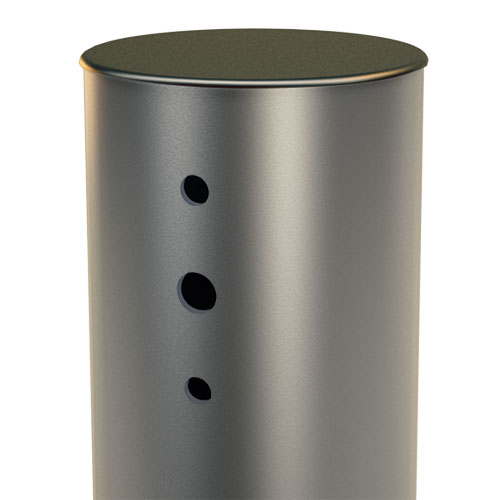

Side Drill Mount
For Side Drill Mount applications specify luminaire type, quantity and orientation. A luminaire drilling template must be supplied at time of order.

Tenon Mount – Welded

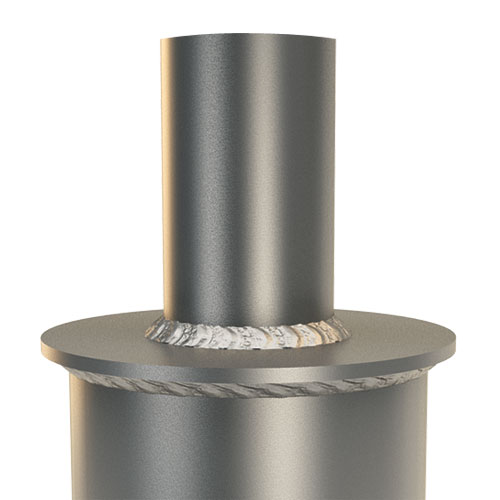

For Tenon Mount applications specify both Tenon diameter (2.375″, 2.875″, 3.5″, 4″, etc.) and length (3″, 4″, 5″, 6″, etc.).

Drill Mount Options

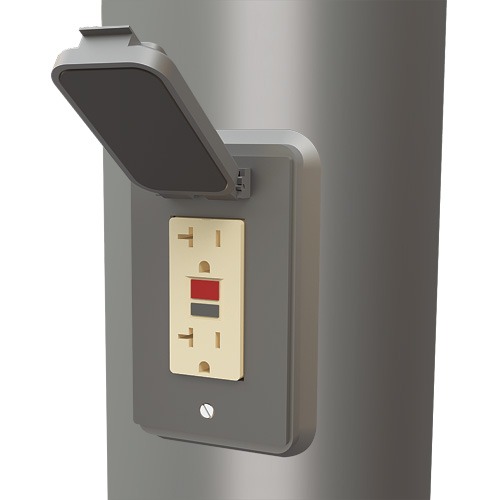

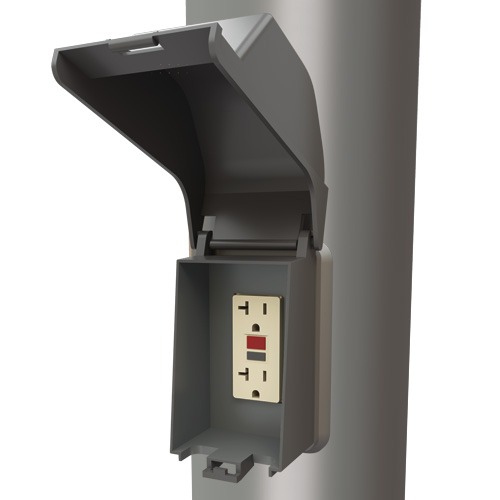

Electrical Box options include Box Only and Boxes with Duplex GFI (WR) Receptacles and Covers. Electrical Boxes are specified with a two-digit notation indicating Height and Orientation (Ex. FA = 30” Up, Side D). Duplex GFI (WR) receptacles with either a Standard Cover (GF1) or In-Use Cover (GF2) can be specified.

GF1

GF1

GF2

GF2

Couplings
Couplings in  ½” (C12), ¾” (C34) and 1” (C10) sizes may be specified.  Specify height and orientation with order.


Extra Handhole
Standard handholes are provided centered at 1’-6” up from the base of the poles.  Extra Handholes may be specified.  Specify height and orientation with order.

Vibration Dampers
First Mode Vibration Dampers can be customer specified.

Vibration Dampers
Read More >

Miscellaneous Options
Special options can be customer specified.
LAB – Less Anchor Bolts
LPC – Less Pole Cap
PAB – Pre-shipped Anchor Bolts

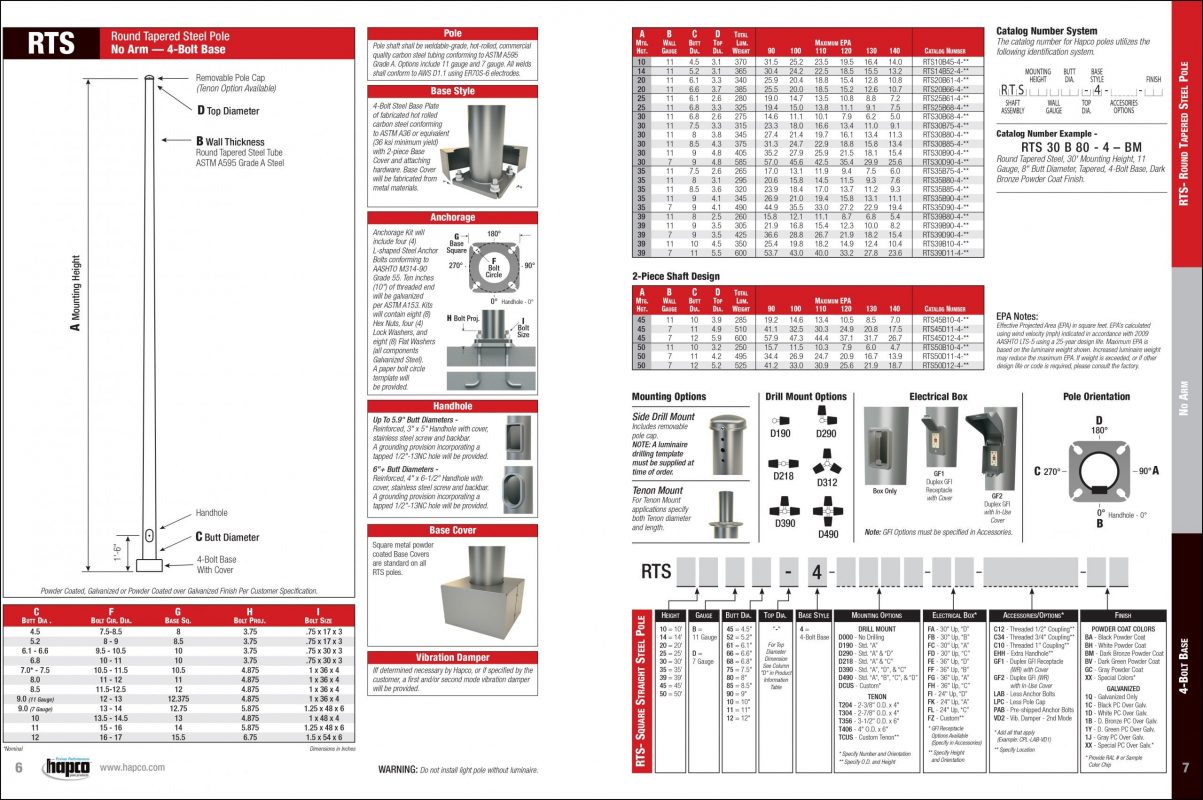

Specification Drawings - RTS No Arm 4-Bolt Base

Download interactive PDF specification drawings of standard RTS No Arm 4-Bolt Base Poles below.

Product No. | Pole Height | Butt Dia. | Wall Thickness
RTS10B45-4-** [ 10′ ] 4.5 Butt Dia., 11 Gauge
RTS14B52-4-** [ 14′ ] 5.2 Butt Dia., 11 Gauge
RTS20B61-4-** [ 20′ ] 6.1 Butt Dia., 11 Gauge
RTS20B66-4-** [ 20′ ] 6.6 Butt Dia., 11 Gauge
Product No. | Pole Height | Butt Dia. | Wall Thickness
RTS25B61-4-** [ 25′ ] 6.1 Butt Dia., 11 Gauge
RTS25B68-4-** [ 25′ ] 6.8 Butt Dia., 11 Gauge
Product No. | Pole Height | Butt Dia. | Wall Thickness
RTS30B68-4-** [ 30′ ] 6.8 Butt Dia., 11 Gauge
RTS30B75-4-** [ 30′ ] 7.5 Butt Dia., 11 Gauge
RTS30B80-4-** [ 30′ ] 8 Butt Dia., 11 Gauge
RTS30B85-4-** [ 30′ ] 8.5 Butt Dia., 11 Gauge
RTS30B90-4-** [ 30′ ] 9 Butt Dia., 11 Gauge
RTS30D90-4-** [ 30′ 9 Butt Dia., 7 Gauge
Product No. | Pole Height | Butt Dia. | Wall Thickness
RTS35B75-4-** [ 35′ ] 7.5 Butt Dia., 11 Gauge
RTS35B80-4-** [ 35′ ] 8 Butt Dia., 11 Gauge
RTS35B85-4-** [ 35′ ] 8.5 Butt Dia., 11 Gauge
RTS35B90-4-** [ 35′ ] 9 Butt Dia., 11 Gauge
RTS35D90-4-** [ 35′ ] 9 Butt Dia., 7 Gauge
Product No. | Pole Height | Butt Dia. | Wall Thickness
RTS39B80-4-** [ 39′ ] 8 Butt Dia., 11 Gauge
RTS39B90-4-** [ 39′ ] 9 Butt Dia., 11 Gauge
RTS39D90-4-** [ 39′ ] 9 Butt Dia., 7 Gauge
RTS39B10-4-** [ 39′ ] 10 Butt Dia., 11 Gauge
RTS39D11-4-** [ 39′ ] 11 Butt Dia., 7 Gauge
Product No. | Pole Height | Butt Dia. | Wall Thickness
RTS45B10-4-** [ 45′ ] 10 Butt Dia., 11 Gauge
RTS45D11-4-** [ 45′ ] 11 Butt Dia., 7 Gauge
RTS45D12-4-** [ 45′ ] 12 Butt Dia., 7 Gauge

RTS50B10-4-** [ 50′ ] 10 Butt Dia., 11 Gauge
RTS50D11-4-** [ 50′ ] 11 Butt Dia., 7 Gauge
RTS50D12-4-** [ 50′ ] 12 Butt Dia., 7 Gauge
