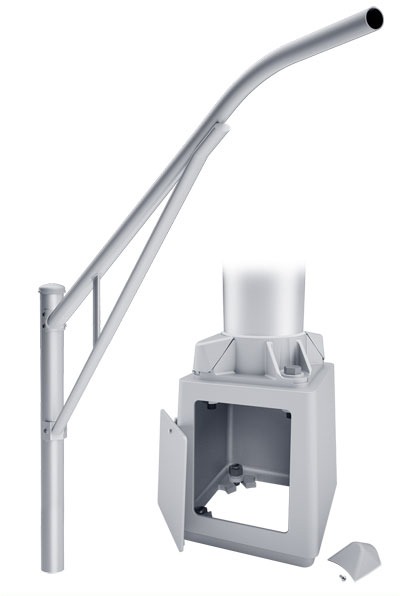

T-Base
Click image to enlarge.
To download a printable file, click PDF Download >
Details
Pole
The pole shaft will be constructed of seamless extruded tube of 6063 Aluminum Alloy per the requirements of ASTM B221. The shaft assembly shall be full-length heat treated after base weld to produce a T6 temper.
Base Style
Cast Aluminum Transformer Base (T-Base) of Alloy 356-T6 with Aluminum Door and Stainless Steel Hex Head Screw. FHWA Approved Breakaway.
Handhole
6″-10″ Butt Diameters – Tapered Door Opening (9-3/4″ W Base x 9-1/4″ W Top x 11-3/4″ H) with Flush Mount Aluminum Cover and Stainless Steel Hex Head Screw. Grounding Provisions tapped 1/4″-20NC and 1/2″-13NC are provided.
Anchorage
Base Anchorage includes four (4) L-shaped Steel Anchor Bolts conforming to AASHTO M314-90 Grade 55, four (4) each Heavy-Duty Flat Washers, Lock Washers, and Hex Nuts (all components Galvanized Steel). Ten inches (10″) of threaded end will be galvanized per ASTM A153. Top Connecting Hardware includes four (4) each 1″-8NC x 3-3/4″ Hex Head Bolts, Flat Washers, Heavy-Duty Flat Washers, Lock Washers, and Hex Nuts (all components Galvanized Steel). A bolt circle template will be provided.
Base and Anchorage Details
Read More >
Vibration Damper
When determined necessary by Hapco, a Vibration Damper will be factory-installed inside the pole shaft. Customer specification of the damper is available.
Vibration Dampers
Read More >
Satin Aluminum Finish
Pole surface will contain a uniform Brushed Aluminum natural finish. Finish to be achieved utilizing specially formulated abrasives in a multi-pass, rotary sanding operation.
Powder Coat Finish
Coating material will be a thermosetting polyester AAMA 2604 Super Durable powder electrostatically applied, oven cured and bonded in a closed loop, automated system. Minimum thickness of finish will be two (2) mils. Hapco’s Powder Coat Finish Warranty on aluminum poles is five (5) years.
Finish Options
Read More >
Pole Shaft Warranty
Hapco warrants its aluminum pole assemblies for their lifetime to be free of defects in material and workmanship.
Hapco Lifetime Pole Assembly Warranty
Read More >
Specification Drawings – RTA Single Truss Arm T-Base
Click on the Product No. to download interactive PDF specification drawing.
Pole Height | Product No. | Butt Dia | Wall | Arm Length | Old Product No. |
---|---|---|---|---|---|
25′ | RTA25B7BFT18-** | 7″ | 0.125” | 8' | |
RTA25C7BFT18-** | 7″ | 0.156” | 8′ | 33-265 | |
RTA25C7BFT1A-** | 7″ | 0.156” | 10′ | 33-268 | |
RTA25D7BFT18-** | 7″ | 0.188” | 8′ | 33-181 | |
RTA25D7BFT1A-** | 7″ | 0.188” | 10′ | 33-184 | |
RTA25D7BFT1C-** | 7″ | 0.188” | 12′ | 33-187 | |
RTA25D8BFT18-** | 8″ | 0.188” | 8′ | 33-195 | |
RTA25D8BFT1A-** | 8″ | 0.188” | 10′ | 33-198 | |
RTA25D8BFT1C-** | 8″ | 0.188” | 12′ | 33-199 | |
RTA25D8CFT1C-** | 8″ | 0.188” | 12′ | 33-237 | |
RTA25D8CFT1E-** | 8″ | 0.188” | 15′ | 33-239 | |
RTA25E8BFT1E-** | 8″ | 0.219” | 15′ | 33-214 | |
30′ | RTA30C8BFT18-** | 8″ | 0.156” | 8′ | 33-601 |
RTA30C8BFT1A-** | 8″ | 0.156” | 10′ | 33-604 | |
RTA30C8CFT1A-** | 8″ | 0.156” | 10' | ||
RTA30C8CFT1C-** | 8″ | 0.156” | 12′ | 33-619 | |
RTA30C8CFT1E-** | 8″ | 0.156” | 15′ | 33-623 | |
RTA30D8BFT18-** | 8″ | 0.188” | 8′ | 33-529 | |
RTA30D8CFT18-** | 8″ | 0.188” | 8′ | 33-567 | |
RTA30D8BFT1A-** | 8″ | 0.188” | 10′ | 33-532 | |
RTA30D8CFT1A-** | 8″ | 0.188” | 10′ | 33-570 | |
RTA30D8CFT1C-** | 8″ | 0.188” | 12′ | 33-573 | |
RTA30D8CFT1E-** | 8″ | 0.188” | 15′ | 33-575 | |
35′ | RTA35D8BFT18-** | 8″ | 0.188” | 8′ | 33-853 |
RTA35D8BFT1A-** | 8″ | 0.188” | 10′ | 33-857 | |
RTA35D8CFT1E-** | 8″ | 0.188” | 15′ | 33-899 | |
RTA35E8BFT18-** | 8″ | 0.219” | 8′ | 33-867 | |
RTA35E8CFT1A-** | 8″ | 0.219” | 10′ | 33-906 | |
RTA35F8CFT1C-** | 8″ | 0.250” | 12′ | 33-921 | |
RTA35F8CFT1E-** | 8″ | 0.250” | 15′ | 33-923 | |
40′ | RTA40E8BFT18-** | 8″ | 0.219” | 8′ | 50706-027 |
RTA40E8BFT1A-** | 8″ | 0.219” | 10′ | 50706-031 | |
RTA40E8CFT1E-** | 8″ | 0.219” | 15′ | 50706-051 | |
RTA40F8CFT18-** | 8″ | 0.250” | 8′ | 50706-068 | |
RTA40F8CFT1A-** | 8″ | 0.250” | 10′ | 50706-072 | |
RTA40F8CFT1C-** | 8″ | 0.250” | 12′ | 50706-075 | |
RTA40F8CFT1E-** | 8″ | 0.250” | 15′ | 50706-077 | |
RTA40D1CFT1E-** | 10″ | 0.188” | 15′ | 50706-090 | |
RTA40E1CFT18-** | 10″ | 0.219” | 8' | ||
RTA40E1CFT1A-** | 10″ | 0.219” | 10′ | 50706-098 | |
RTA40E1CFT1C-** | 10″ | 0.219” | 12' | ||
RTA40E1CFT1E-** | 10″ | 0.219” | 15′ | 50706-103 | |
45′ | RTA45E8CFT1E-** | 8″ | 0.219” | 15' | |
RTA45F8CFT1A-** | 8″ | 0.250” | 10' | ||
RTA45F8CFT1E-** | 8″ | 0.250” | 15' | ||
RTA45E1CFT1A-** | 10″ | 0.219” | 10' | ||
RTA45E1CFT1E-** | 10″ | 0.219” | 15' | ||
RTA45F1CFT1A-** | 10″ | 0.250” | 10' | ||
RTA45F1CFT1E-** | 10″ | 0.250” | 15' |
