triple bullhorn 120 arm t-base

T-Base

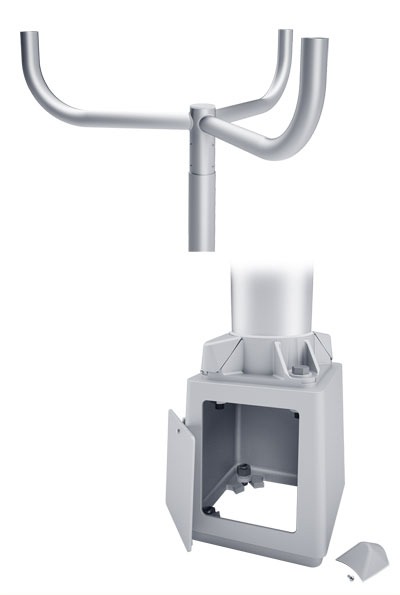

catalog page for triple bullhorn 120 arm t-base

Click image to enlarge.
To download a printable file, click PDF Download >

Details

Pole

The pole shaft will be constructed of seamless extruded tube of 6063 Aluminum Alloy per the requirements of ASTM B221. The shaft assembly shall be full-length heat treated after base weld to produce a T6 temper.

Base Style

Cast Aluminum Transformer Base (T-Base) of Alloy 356-T6 with Aluminum Door and Stainless Steel Hex Head Screw. FHWA Approved Breakaway.


Handhole

6″-10″ Butt Diameters – Tapered Door Opening (9-3/4″ W Base x 9-1/4″ W Top x 11-3/4″ H) with Flush Mount Aluminum Cover and Stainless Steel Hex Head Screw. Grounding Provisions tapped 1/4″-20NC and 1/2″-13NC are provided.
T-Base Cover On

Anchorage

Base Anchorage includes four (4) L-shaped Steel Anchor Bolts conforming to AASHTO M314-90 Grade 55, four (4) each Heavy-Duty Flat Washers, Lock Washers, and Hex Nuts (all components Galvanized Steel). Ten inches (10″) of threaded end will be galvanized per ASTM A153. Top Connecting Hardware includes four (4) each 1″-8NC x 3-3/4″ Hex Head Bolts, Flat Washers, Heavy-Duty Flat Washers, Lock Washers, and Hex Nuts (all components Galvanized Steel). A bolt circle template will be provided.

Base and Anchorage Details
Read More >

T-base anchor bolts in the ground

Vibration Damper

When determined necessary by Hapco, a Vibration Damper will be factory-installed inside the pole shaft. Customer specification of the damper is available.

Vibration Dampers
Read More >

Satin Aluminum Finish

Pole surface will contain a uniform Brushed Aluminum natural finish. Finish to be achieved utilizing specially formulated abrasives in a multi-pass, rotary sanding operation.

Powder Coat Finish

Coating material will be a thermosetting polyester AAMA 2604 Super Durable powder electrostatically applied, oven cured and bonded in a closed loop, automated system. Minimum thickness of finish will be two (2) mils. Hapco’s Powder Coat Finish Warranty on aluminum poles is five (5) years.

Finish Options
Read More >

Pole Shaft Warranty

Hapco warrants its aluminum pole assemblies for their lifetime to be free of defects in material and workmanship.

Hapco Lifetime Pole Assembly Warranty
Read More >

Specification Drawings – RTA Triple Bullhorn 120 Arm T-Base

Click on the Product No. to download interactive PDF specification drawing.

Pole HeightProduct No.Butt DiaWall
20′RTA20D7BFBC0-**7″0.188”
RTA20D8BFBC0-**8″0.188”
25′RTA25D7BFBC0-**7″0.188”
RTA25D8BFBC0-**8″0.188”
RTA25E8BFBC0-**8″0.219”
RTA25F8BFBC0-**8″0.250”
30′RTA30D7BFBC0-**7″0.188”
RTA30D8BFBC0-**8″0.188”
RTA30E8BFBC0-**8″0.219”
RTA30F8BFBC0-**8″0.250”
RTA30D1CFBC0-**10″0.188”
RTA30E1CFBC0-**10″0.219”
RTA30F1CFBC0-**10″0.250”
35′RTA35D8BFBC0-**8″0.188”
RTA35E8BFBC0-**8″0.219”
RTA35F8BFBC0-**8″0.250”
RTA35D1CFBC0-**10″0.188”
RTA35E1CFBC0-**10″0.219”
RTA35F1CFBC0-**10″0.250”
40′RTA40E8BFBC0-**8″0.219”
RTA40F8BFBC0-**8″0.250”
RTA40D1CFBC0-**10″0.188”
RTA40E1CFBC0-**10″0.219”
RTA40F1CFBC0-**10″0.250”
45′RTA45D1CFBC0-**10″0.188”
RTA45E1CFBC0-**10″0.219”
RTA45F1CFBC0-**10″0.250”
